EKI-2428G-4CI-AE 24GE+4G Combo Port Unmanaged Switch with Wide Temperature

24GE+4G Combo Port Unmanaged Switch with Wide Temperature
  • 24GE+4G Combo Port Unmanaged Switch with Wide Temperature
  • 24GE+4G Combo Port Unmanaged Switch with Wide Temperature

  1. 24 x Gigabit ports + 4 x Gigabit copper/SFP combo ports
  2. SFP socket for Easy and Flexible Fiber Expansion
  3. Provides 8K MAC address
  4. Supports 12-48V DC power input
  5. -40 ~ 70°C wide-range operating temperature
Certifications
CE CE CE CE CE
Resources
Resources Download
DatasheetDownloadManual3D ModelExtended Specifications
Please visit via PC to place order/quote

$856.80

5 years extended warranty
Make an inquiry Add to Quote
Please Select Purchase Qty X
confirm
Add to Cart
Please Select Purchase Qty X
confirm
Features

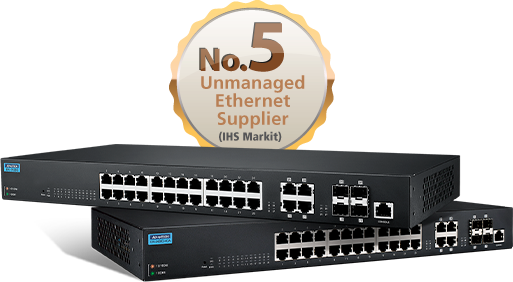

Industrial Rack Mount
Unmanaged Ethernet Switch

The EKI-2428G series is an industrial-class rackmount unmanaged switch with 24 Gigabit ports and 4 Gigabit copper/SFP ports. It is designed for rack-mount installation and is highly reliable with -40 ~ 70 °C wide temperature operation. Therefore, it can be deployed in demanding industrial environments and is suitable for edge to core industrial networks.

Feature Highlights
Robust Communication Solutions
  • Super slim IP30 metal casing provides reliable and compact management functionality
  • Supports wide operating temperatures from -40 to 75°C
Fiber connectivity for long transmission distance and anti-interference
  • Connection between long distance
  • Fiber is reliably quicker over longer distances without the need to boost the signal as you would have to with copper
  • Better quality of data transmission • Best solution for long transmission distance
Plug-and-Play
  • No setting effort
  • No compatibility issues
  • oes along with any type of network infrastructure
  • Slim size for instant installation with minimal cost and effort, allowing users to upgrade to an intelligent plant with ease
Certifications

CE

FCC

3C

LVD 62368

Product Specifications

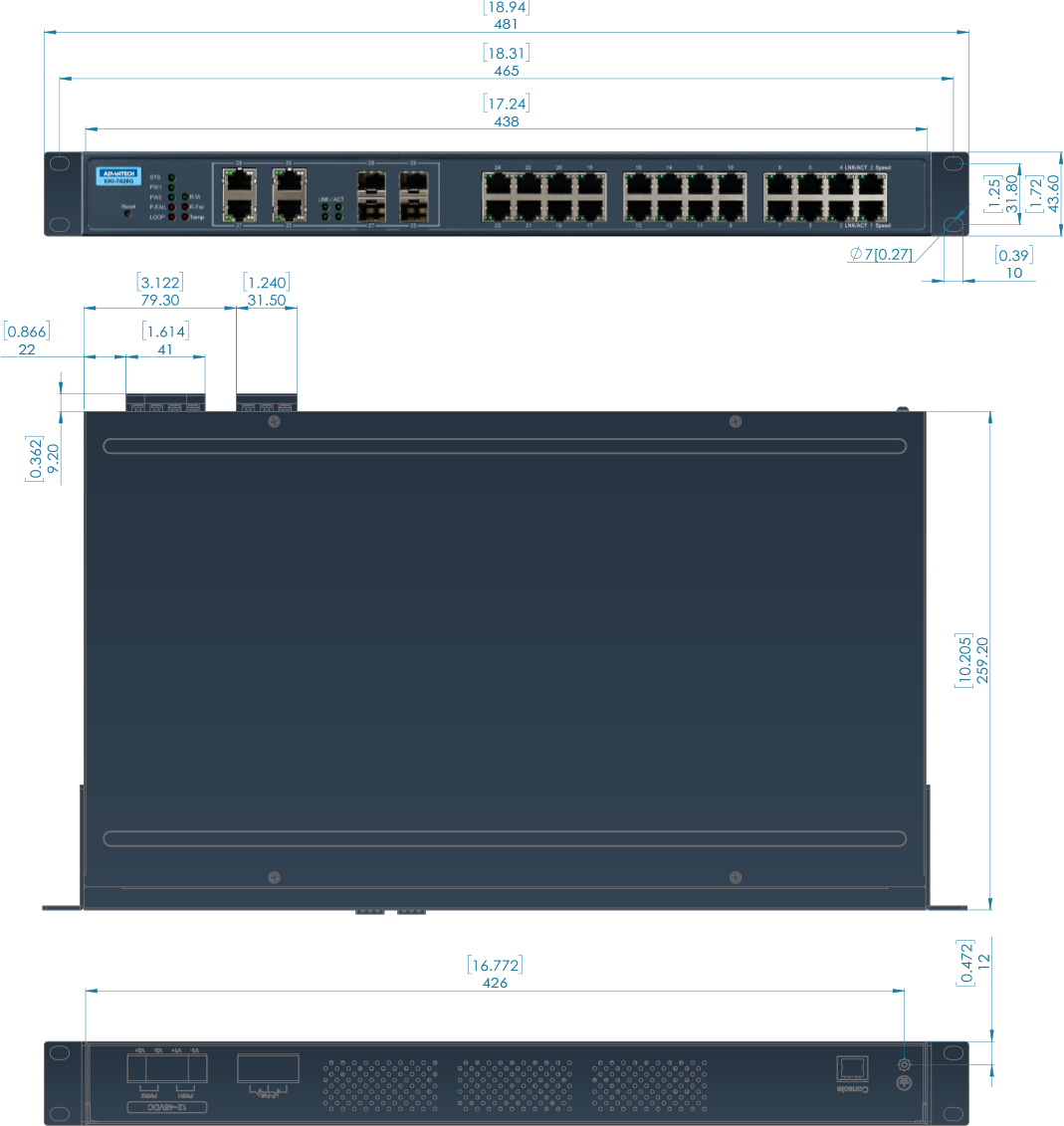

Dimensions
Unit: mm
EKI-2428G-4CI
Installation

Advantech's EKI-2428G rack mount series is designed to reduce space occupation as much as possible so that it can be placed on the rack for network deployment

Rack Mount
Inside the Box
Specifications
Category
Attribute
Value
Power
Power Connector Type
4-pin removable screw terminal (power & relay)
Power
Power Consumption
20W (system)
Power
Power Input (AC)
-
Power
Power Input (Battery)
-
Power
Power Input (DC)
12 ~ 48 VDC (8.4 ~ 52.8 VDC) redundant dual inputs
Power
Power Input (PoE)
-
Power
Power Operating Current
0.83A @ 24 V
Protection
Overload Current
Present
Protection
Reverse Polarity
Present
Environment
Operating Temperature
-40 ~ 70°C (-40 ~ 158°F)
Environment
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Environment
Temperature (Max. Operating)
70°C (158°F)
Environment
Temperature (Min. Operating)
-40°C (-40°F)
Mechanism
Dimensions (W x H x D)
438 x 43.6 x 259.2 mm (17.24 x 1.71 x 10.2 in.)
Mechanism
Enclosure (Plastic)
-
Mechanism
IP Rating
IP30
Mechanism
Mounting (DIN-rail)
-
Mechanism
Mounting (Panel)
-
Mechanism
Mounting (Pole Mount)
-
Mechanism
Mounting (Rack Mount)
Yes
Mechanism
Mounting (Stack)
-
Mechanism
Mounting (Wall)
-
Mechanism
Weight
3.8 kg
Ethernet Communication
Fiber Port Connector Type
SFP cage
Ethernet Communication
Fiber Port Interface
SFP
Ethernet Communication
Fiber Port Number
4 (combo)
Ethernet Communication
Fiber Transmission Distance
Up to 110 km
Ethernet Communication
Fiber Transmission Speed
10/100/1000 Mbps
Ethernet Communication
RJ-45 Port Connector Type
RJ-45
Ethernet Communication
RJ-45 Port Number
24 + 4 (combo)
Ethernet Communication
RJ-45 Transmission Distance
100 m
Ethernet Communication
RJ-45 Transmission Speed
10/100/1000 Mbps
Switch Properties
Jumbo Frame
9,216 bytes
Switch Properties
MAC Table Size
8K
Switch Properties
Packet Buffer Size
4.1M bit
Switch Properties
Switch Fabric Speed
56Gbps
Certification
EMI
CE, FCC, EN55022 Class A
Certification
EMS
EN 61000-4-2 (Level 3), EN 61000-4-3 (Level 3), EN 61000-4-4 (Level 3), EN 61000-4-5 (Level 3), EN 61000-4-6 (Level 3), EN 61000-4-8 (Level 3)
Certification
Safety
UL 61010-2-201
Warranty
Warranty Period
5 years
PoE Information
PoE Budget
-
PoE Information
PoE Output
-
PoE Information
PoE Port Number
-
PoE Information
Support PoE
No
