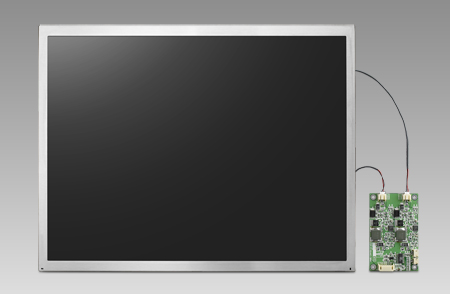

IDK-2108N-K2SVA2E 8.4" 800x600 LVDS 1200nits 6/8-bit High Brightness Display Kit

  1. 8.4” LCD supports 800 x 600 pixels
  2. Ultra-high brightness of 1200cd/m2 with LED backlight
  3. -5℃~+60℃ wide operating temperature support
  4. High contrast ratio of 600:1
  5. Superior sunlight readability
  6. Low power consumption 4.32W
Certifications
CE
Please visit via PC to place order/quote

$337.88

Make an inquiry Add to Quote
Please Select Purchase Qty X
Add to Cart
Please Select Purchase Qty X
Specifications
Category
Attribute
Value
Environment
Operational Temperature
-20 ~ 70° C
LCD Display
Backlight Type
LED
LCD Display
Brightness
1200 nits
LCD Display
Colors
262K/16.2M
LCD Display
Contrast Ratio
600 : 1
LCD Display
Dimension
203.0 x 142.5 x 8 mm
LCD Display
Power Consumption
5.35W
LCD Display
Resolution
800 x 600, SVGA
LCD Display
Response Time (ms)
30
LCD Display
Signal Interface
1 Channel LVDS
LCD Display
Size
8.4"
LCD Display
Supply Voltage
3.3V
LCD Display
Viewing Angle (H/V°)
160/140
LCD Display
Weight
260g
