FPM-7121T-R3AE LCD DISPLAY, 12.1" XGA Ind Monitor w/Resistive TS (VGA/DP)

  1. 12.1" XGA TFT LED LCD with 50,000 backlight life time
  2. Robust design with IP66 compliance aluminum front panel
  3. Wide operating temperature support -20~60°C
  4. Anti-glare screen with tempered glass
  5. Supports Panel, Wall, Desktop, Rack or VESA arm mounting
  6. Combo RS-232 & USB interface for touchscreen function

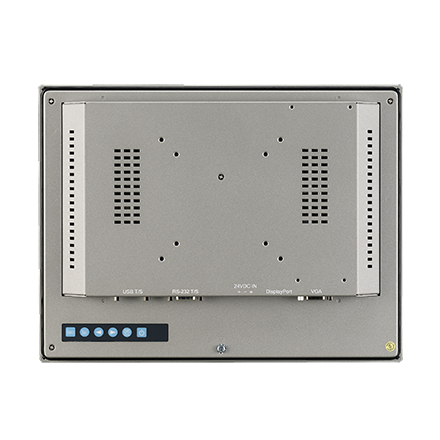

  7. OSD control pad on rear cover
  8. Lockable I/O connectors
Please visit via PC to place order/quote

$819.55

Make an inquiry Add to Quote Add to Cart
Specifications
Category
Attribute
Value
General
Certifications
BSMI, CCC, CE, FCC Class A, UL
General
Dimensions (W x H x D)
311.8 x 238 x 44.5 mm (12.38" x 9.37" x 1.76")
General
Enclosure
Front bezel: Die-cast Aluminum alloy, Rear housing: SECC
General
Mounting
Stand, Wall, Panel and VESA 75x75 & 100x100mm
General
OSD Controls
OSD control on rear cover
General
Power Consumption
15 W + 20%
General
Power Input
Phoenix Connector: 24 VDC input
General
Video Port
VGA & DP
General
Weight (Net)
2.6kg (5.73 lbs)
LCD Display
Backlight Life (hrs)
50, 000 hrs
LCD Display
Contrast Ratio
700:1
LCD Display
Display Size
12.1"
LCD Display
Display Type
XGA TFT LED LCD
LCD Display
Luminance (cd/m2)
600
LCD Display
Max. Colors
16.2M
LCD Display
Max. Resolution
1024 x 768
LCD Display
Viewing Angle (H/V°)
160/140
Environment
Humidity (Storage)
10 ~ 90% non-condensing
Environment
Operating Temperature
-20 ~ 60° C (-4 ~ 140° F)
Environment
Storage Temperature
-30 ~ 70°C (-22 ~ 158°F)
Environment
Vibration
5 ~ 500 Hz, 1 Grms (Operating, Random)
Environment
Waterproof
Front panel is IP66
Touchscreen
Interface
RS-232 and USB
Touchscreen
Light Transmission
Above 75%
Touchscreen
OS Support
Windows XP, Vista,7, 8,10,XPe and Linux
Touchscreen
Type
5-wire, analog resistive
Recommended Peripherals

Accessory Products

Part No. Description Unit Price(USD) Qty
FPM-1000T-SMKE FPM-1000T-SMKE Mounting kit for desktop & wall $65.81
1702002600 Power Cord UL 3P 10A 125V 183cm $2.36
1702002605 Power Cord EU 3P 10A 250V 183cm 90° $2.22
1702031801 Power Cord BSI 3P 10A 250V 183cm $4.66
Part No. Qty
FPM-1000T-SMKE
FPM-1000T-SMKE Mounting kit for desktop & wall
Unit Price(USD): $65.81
1702002600
Power Cord UL 3P 10A 125V 183cm
Unit Price(USD): $2.36
1702002605
Power Cord EU 3P 10A 250V 183cm 90°
Unit Price(USD): $2.22
1702031801
Power Cord BSI 3P 10A 250V 183cm
Unit Price(USD): $4.66
