UTC-510DPP-IOT0E 10.1" Ubiquitous Touch Computer with Intel® Celeron® N2807, 4GB RAM, 128G SSD,W10,PoE

  1. Low Power & Fanless design
  2. Built-in Intel® Celeron® N2807
  3. Providing Natural Viewing Experience with 16:10 10.1" Display
  4. Landscape & Portrait screen mode support by different applications
  5. VESA 75 mm standard mounting holes for varied mounting demands
  6. Detachable plastic frame design for panel mount applications
  7. POE supported on Celeron N2807 platform
Please visit via PC to place order/quote
Make an inquiry
Features
UTC-500 Series

UTC-510

  • WISE-DeviceOn

  • Fanless

  • IP65

  • Multiple OS Support

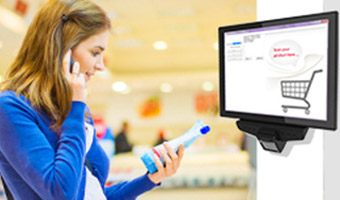

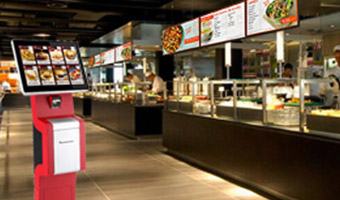

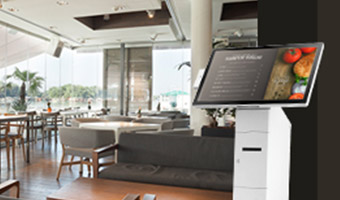

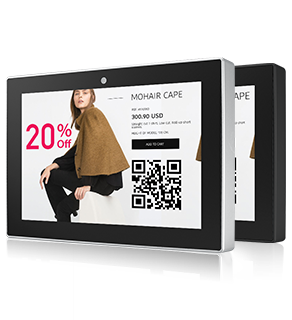

UTC-510 is a multipurpose 10.1" all-in-one (AiO) computer that features a fanless design and a fourth-generation Intel® Atom™/Celeron® processor for delivering high-performance computing in a compact platform. UTC-510 offers industrial-grade reliability, extendable functionality, multiple OS support, and flexible mounting options, making it an ideal AiO terminal for various types of in-store interaction, point-of-sale, self-service, and equipment control applications in retail, hospitality, public service, and factory environments.

Features

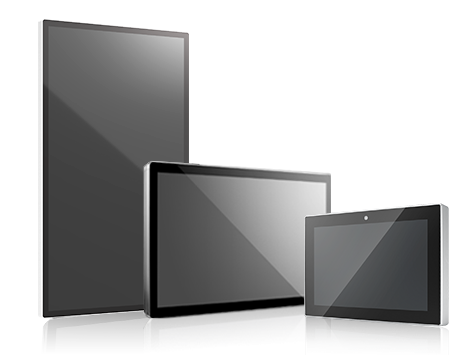

10-42" AiO PCs with a Compact and Slim Design

Advantech's UTC-500 series AiOs are available in 10.1, 15.6, 21.5, 32, and 42.5". The compact and slim design provides enhanced installation flexibility, while the stunning 16:10 LCD (UTC-510) complements the system's sleek and stylish appearance.

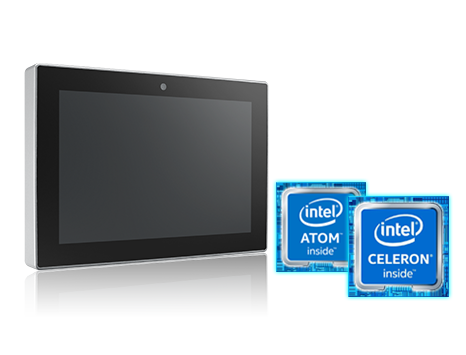

Excellent Performance and Multiple OS Support

Powered by a fourth-generation Intel® processor (Atom™ E3825/Celeron® J1900/Celeron® N2807) and equipped with up to 8 GB of DDR3L memory, the UTC-510 is a competitively priced solution that delivers excellent computing performance. The UTC-510 supports multiple OS, including Windows, Android (4.4.2), and Linux, further increasing the system's overall compatibility and flexibility.

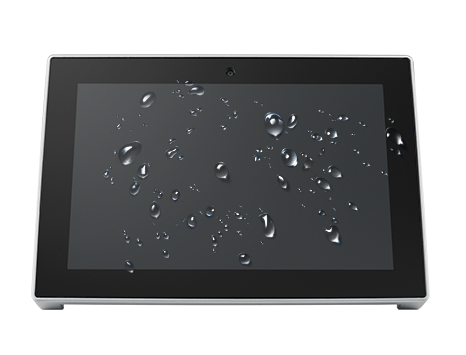

Rugged and Durable Touchscreen

Equipped with a true-flat touchscreen, the UTC-510 also features a front panel with an IP65 rating for water and dust protection, conforming to environmental specifications for industrial and commercial operation environments.

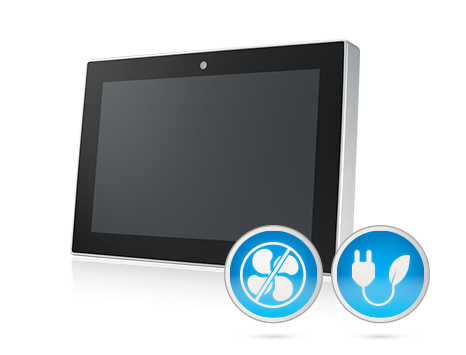

Fanless, Low-Power System

The fanless, low-power system design ensures quiet operation for long durations and reduces the accumulation of dust and foreign contaminants, thereby extending the product lifecycle.

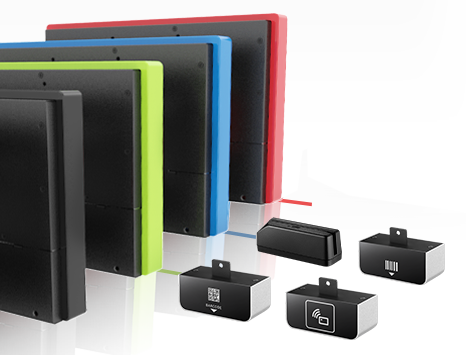

Diverse Peripheral Options and Customizable Frame Color

The UTC-510 can be equipped with diverse peripherals, including a camera, magnetic strip reader, NFC/RFID reader, iBeacon module, and barcode scanner, to extend the system functionality. Besides the default black and silver color, the frame can be produced in any color upon request, in order to ensure a unified brand image.

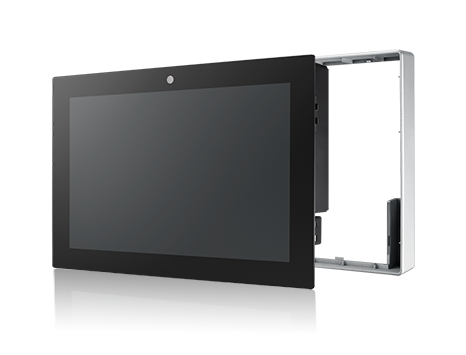

Removable Frame Design for More Convenient Installation

The removable frame can be easily detached to render the front panel flush with the surrounding wall for a truly seamless appearance. This feature is ideal for embedded wall applications.

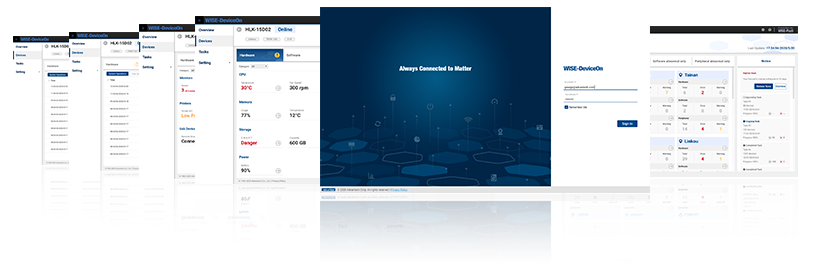

DeviceOn is an Advantech device management
platform to accessand manage your in-field devices
in a more efficient way.

Total Management​

Devices & Hardware

Software & Peripherals

Remote Access

Realtime Monitoring

Remote Controls

Efficient Operations

OTA Update

Batch Controls

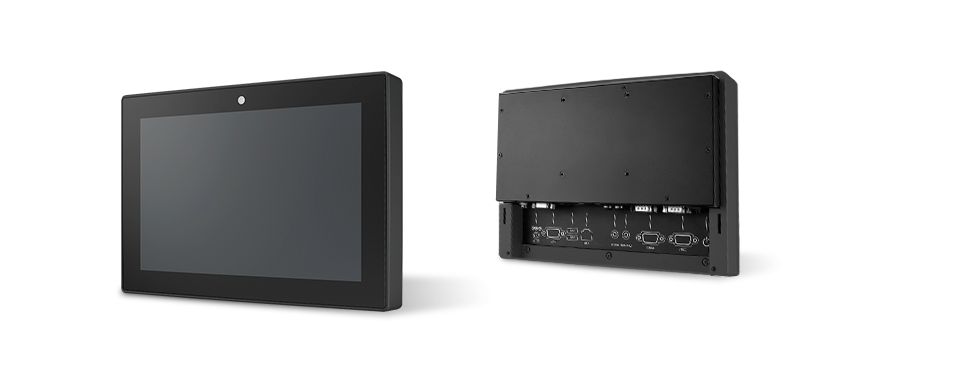

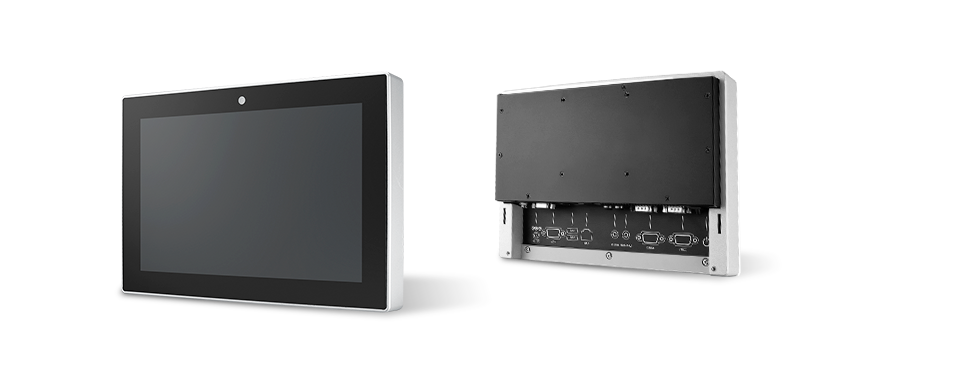

Color Options

Specifications
Category
Attribute
Value
Processor System
CPU
Intel® Celeron® N2807
Processor System
OS
Windows 10 IoT Enterprise 64bit
Processor System
RAM
4GB DDR3L
Processor System
Storage
128G SSD
Display
Brightness
350 cd/m²
Display
Camera
5 Mega Pixel (Optional)
Display
Max. Resolution
WXGA (1280 X 800)
Display
Size
10.1" TFT LCD
Touch Screen
Type
Projected Capacitive Touch Panel (Pcap. Flat Glass)
I/O Interface
Ethernet
2 x Gigabit Ethernet (1 with PoE)
I/O Interface
Extendable Slot
1 Full size MiniPCIe/mSATA 1 Half size MiniPCIe
I/O Interface
Output
1 x VGA
I/O Interface
Serial Port
2 x COM (RS-232)
I/O Interface
Speaker
2 x 2W Speaker
I/O Interface
USB Port
3 x USB 2.0, 1 x USB 3.0
Environment
Operating Humidity
10 ~ 95% @ 40°C non-condensing
Environment
Operating Temperature
0~40° C
Environment
Shock
5G peak acceleration (11 msec. duration)
Recommended Peripherals

Accessory Products

Part No. Description Unit Price(USD) Qty
1931031500 Screw M3*15L S/S D=5 H=1.3 (2+) ST Ni $0.02
UTC-510PW-A0E 510(PoE),EWM-W172,802.11ac/a/b/g/n,2T2R,BT4.2HMC $65.42
170203180A 10.1" Open Frame Panel PC with Intel® Celeron® N3350 /Pentium® N4200 $6.30
170203183C 10.1" Open Frame Panel PC with Intel® Celeron® N3350 /Pentium® N4200 $3.26
1930005598 Screw SP/S M6*21L D=9 H=2+ ST BZn $1.28
1960086099N000 panel mount clamper for UTC-511 $2.94
UTC-510-STAND0E Table Stand for UTC-510 $56.77
